This is only possible because the op amp has such a high input impedance and a low output impedance; the op amp works to maintain this state! Remember that an op amp is a powered device, not a passive device. The voltage follower Figure 1 allows us to move from one circuit to another and maintain the voltage level.

It preserves the voltage source signal. You can use a voltage divider circuit to switch from one logic level e. A cleaner switch is obtained when a voltage follower buffer amplifier is added to the voltage divider circuit Figure 3. Another way to accomplish logic level shifting or translation is to use an IC called a level shifter to accomplish the same buffered transition.

The high impedance of the op amp makes it possible for the voltage follower circuit to keep the load Ro from affecting the output voltage. A voltage divider is not a regulator and you could end up smoking a resistor if a voltage divider is used to step-down a power source. With or without a voltage divider circuit, the voltage follower, or voltage buffer, offers a means to transfer a voltage source signal from one impedance level to another without affecting current.

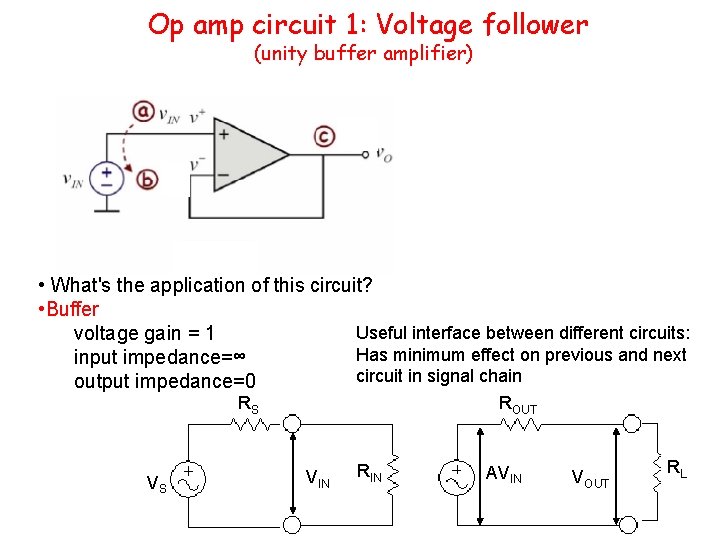

Figure 1: A voltage follower has a gain of one, so theoretically the output voltage is equal to the input voltage. Op amps also have a very low output impedance. One application where this is useful is in a voltage divider. Adding a voltage follower to the voltage divider circuit isolates the load impedance Ro so that VOUT is dependent upon R1 and R2 see figure 3 , not Ro.

Figure 3: A voltage divider with a voltage follower unity gain amp that allows VOUT to remain steady. This is only possible because the op amp has such a high input impedance and a low output impedance; the op amp works to maintain this state! Remember that an op amp is a powered device, not a passive device. The voltage follower Figure 1 allows us to move from one circuit to another and maintain the voltage level. It preserves the voltage source signal. You can use a voltage divider circuit to switch from one logic level e.
